Traffic control: Fine-grained traffic routing
- [실습 환경 구성] k8s(1.23.17) 배포 : NodePort(30000 HTTP, 30005 HTTPS)
#
git clone https://github.com/AcornPublishing/istio-in-action
cd istio-in-action/book-source-code-master
pwd # 각자 자신의 pwd 경로
code .
# 아래 extramounts 생략 시, myk8s-control-plane 컨테이너 sh/bash 진입 후 직접 git clone 가능
kind create cluster --name myk8s --image kindest/node:v1.23.17 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
extraPortMappings:
- containerPort: 30000 # Sample Application (istio-ingrssgateway) HTTP
hostPort: 30000
- containerPort: 30001 # Prometheus
hostPort: 30001
- containerPort: 30002 # Grafana
hostPort: 30002
- containerPort: 30003 # Kiali
hostPort: 30003
- containerPort: 30004 # Tracing
hostPort: 30004
- containerPort: 30005 # Sample Application (istio-ingrssgateway) HTTPS
hostPort: 30005
- containerPort: 30006 # TCP Route
hostPort: 30006
- containerPort: 30007 # kube-ops-view
hostPort: 30007
extraMounts: # 해당 부분 생략 가능
- hostPath: /Users/gasida/Downloads/istio-in-action/book-source-code-master # 각자 자신의 pwd 경로로 설정
containerPath: /istiobook
networking:
podSubnet: 10.10.0.0/16
serviceSubnet: 10.200.1.0/24
EOF
# 설치 확인
docker ps
# 노드에 기본 툴 설치
docker exec -it myk8s-control-plane sh -c 'apt update && apt install tree psmisc lsof wget bridge-utils net-tools dnsutils tcpdump ngrep iputils-ping git vim -y'
# (옵션) kube-ops-view
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30007 --set env.TZ="Asia/Seoul" --namespace kube-system
kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view
## kube-ops-view 접속 URL 확인
open "http://localhost:30007/#scale=1.5"
open "http://localhost:30007/#scale=1.3"
# (옵션) metrics-server
helm repo add metrics-server https://kubernetes-sigs.github.io/metrics-server/
helm install metrics-server metrics-server/metrics-server --set 'args[0]=--kubelet-insecure-tls' -n kube-system
kubectl get all -n kube-system -l app.kubernetes.io/instance=metrics-server
- [실습 환경 구성] istio 1.17.8 설치 (addon 필수)
# myk8s-control-plane 진입 후 설치 진행
docker exec -it myk8s-control-plane bash
-----------------------------------
# (옵션) 코드 파일들 마운트 확인
tree /istiobook/ -L 1
혹은
git clone ... /istiobook
# istioctl 설치
export ISTIOV=1.17.8
echo 'export ISTIOV=1.17.8' >> /root/.bashrc
curl -s -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIOV sh -
cp istio-$ISTIOV/bin/istioctl /usr/local/bin/istioctl
istioctl version --remote=false
# default 프로파일 컨트롤 플레인 배포
istioctl install --set profile=default -y
# 설치 확인 : istiod, istio-ingressgateway, crd 등
kubectl get istiooperators -n istio-system -o yaml
kubectl get all,svc,ep,sa,cm,secret,pdb -n istio-system
kubectl get cm -n istio-system istio -o yaml
kubectl get crd | grep istio.io | sort
# 보조 도구 설치
kubectl apply -f istio-$ISTIOV/samples/addons
kubectl get pod -n istio-system
# 빠져나오기
exit
-----------------------------------
# 실습을 위한 네임스페이스 설정
kubectl create ns istioinaction
kubectl label namespace istioinaction istio-injection=enabled
kubectl get ns --show-labels
# istio-ingressgateway 서비스 : NodePort 변경 및 nodeport 지정 변경 , externalTrafficPolicy 설정 (ClientIP 수집)
kubectl patch svc -n istio-system istio-ingressgateway -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 8080, "nodePort": 30000}]}}'
kubectl patch svc -n istio-system istio-ingressgateway -p '{"spec": {"type": "NodePort", "ports": [{"port": 443, "targetPort": 8443, "nodePort": 30005}]}}'
kubectl patch svc -n istio-system istio-ingressgateway -p '{"spec":{"externalTrafficPolicy": "Local"}}'
kubectl describe svc -n istio-system istio-ingressgateway
# NodePort 변경 및 nodeport 30001~30003으로 변경 : prometheus(30001), grafana(30002), kiali(30003), tracing(30004)
kubectl patch svc -n istio-system prometheus -p '{"spec": {"type": "NodePort", "ports": [{"port": 9090, "targetPort": 9090, "nodePort": 30001}]}}'
kubectl patch svc -n istio-system grafana -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "targetPort": 3000, "nodePort": 30002}]}}'
kubectl patch svc -n istio-system kiali -p '{"spec": {"type": "NodePort", "ports": [{"port": 20001, "targetPort": 20001, "nodePort": 30003}]}}'
kubectl patch svc -n istio-system tracing -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 16686, "nodePort": 30004}]}}'
# Prometheus 접속 : envoy, istio 메트릭 확인
open http://127.0.0.1:30001
# Grafana 접속
open http://127.0.0.1:30002
# Kiali 접속 1 : NodePort
open http://127.0.0.1:30003
# (옵션) Kiali 접속 2 : Port forward
kubectl port-forward deployment/kiali -n istio-system 20001:20001 &
open http://127.0.0.1:20001
# tracing 접속 : 예거 트레이싱 대시보드
open http://127.0.0.1:30004
# 내부 접속 테스트용 netshoot 파드 생성
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: netshoot
spec:
containers:
- name: netshoot
image: nicolaka/netshoot
command: ["tail"]
args: ["-f", "/dev/null"]
terminationGracePeriodSeconds: 0

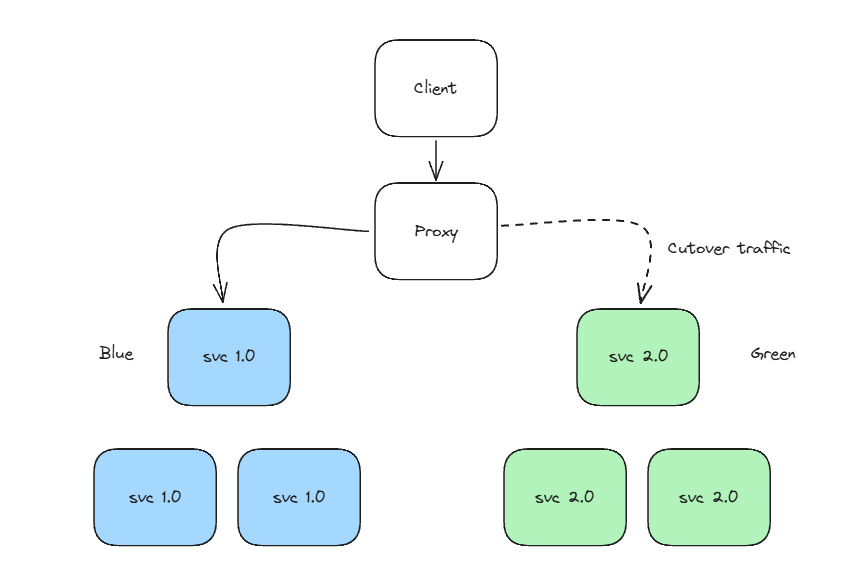

EOF- 배포와 릴리스
- ㅇㅇㅇㅇ
Routing requests with Istio (실습)
- VirtualService
- ㅌㅌㅌㅌㅌ
- v1 catalog Service 배포

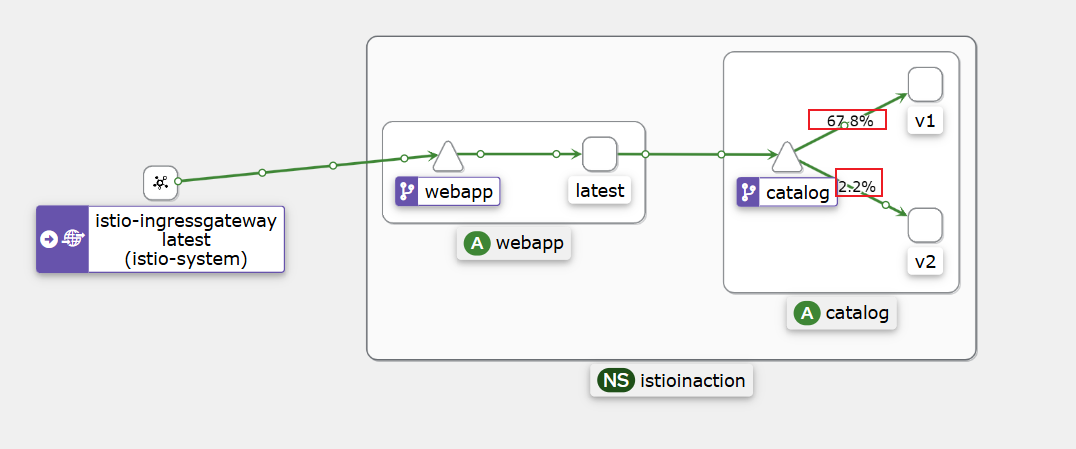

- v2 catalog Service 배포 → 배포 후, 트래픽은 v1/v2로 라우팅
- 모든 트래픽을 catalog v1 으로 라우팅(다크런치)

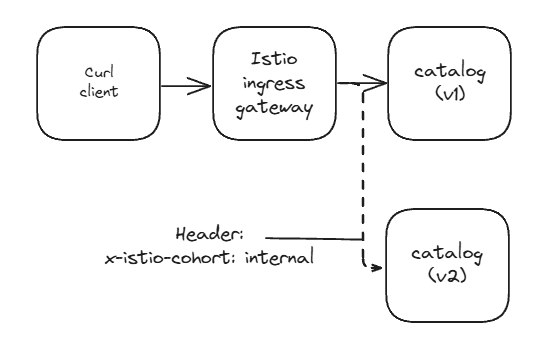

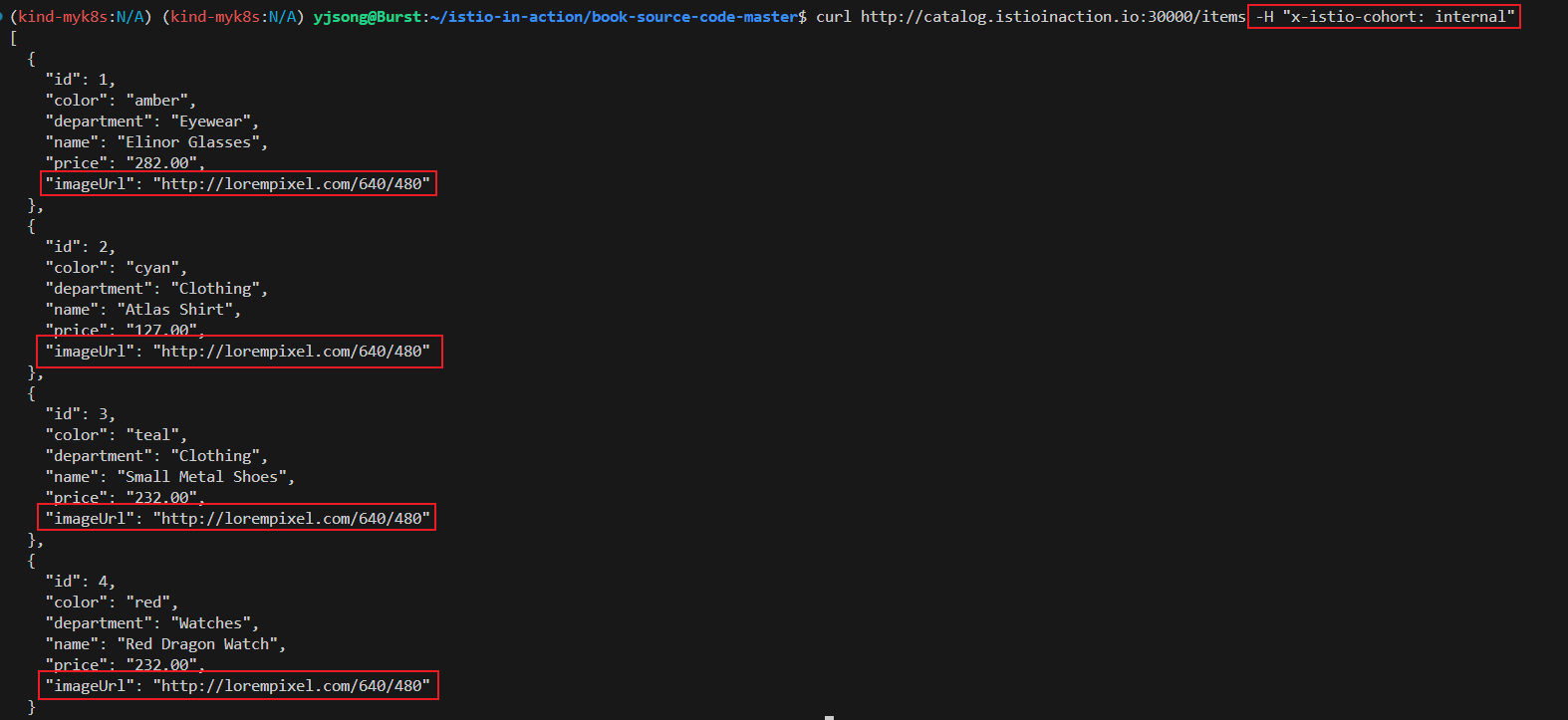

- 특정 요청들을 통제된 방식으로 v2 라우팅

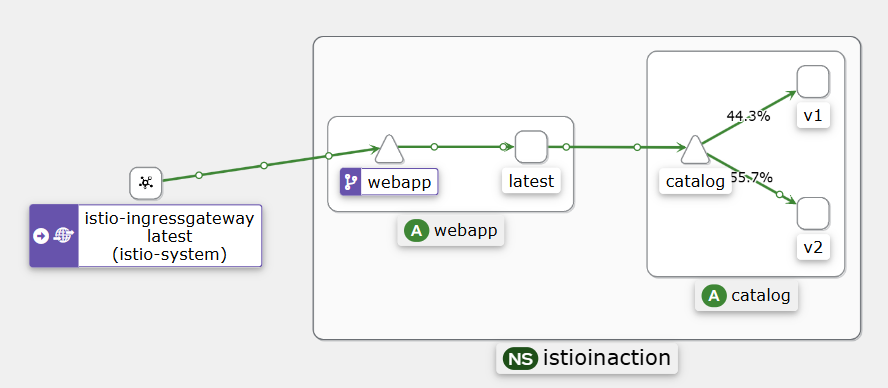

- 호출 그래프 내 깊은 위치에서 라우팅 Mesh(Gateway)
- (1) Deploying v1 of the catalog service
# Let’s deploy v1 of our catalog service. From the root of the book’s source code, run the following command
kubectl apply -f services/catalog/kubernetes/catalog.yaml -n istioinaction
# 확인
kubectl get pod -n istioinaction -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
catalog-6cf4b97d-ftl77 2/2 Running 0 42s 10.10.0.14 myk8s-control-plane <none> <none>
# 도메인 질의를 위한 임시 설정 : 실습 완료 후에는 삭제 해둘 것
echo "127.0.0.1 catalog.istioinaction.io" | sudo tee -a /etc/hosts
cat /etc/hosts | tail -n 3
# netshoot로 내부에서 catalog 접속 확인
kubectl exec -it netshoot -- curl -s http://catalog.istioinaction/items | jq
# 외부 노출을 위해 Gateway 설정
cat ch5/catalog-gateway.yaml
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: catalog-gateway
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "catalog.istioinaction.io"
kubectl apply -f ch5/catalog-gateway.yaml -n istioinaction
# 트래픽을 catalog 서비스로 라우팅하는 VirtualService 리소스 설정
cat ch5/catalog-vs.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: catalog-vs-from-gw
spec:
hosts:
- "catalog.istioinaction.io"
gateways:
- catalog-gateway
http:
- route:
- destination:
host: catalog
kubectl apply -f ch5/catalog-vs.yaml -n istioinaction
# 확인
kubectl get gw,vs -n istioinaction
NAME AGE
gateway.networking.istio.io/catalog-gateway 95s
NAME GATEWAYS HOSTS AGE
virtualservice.networking.istio.io/catalog-vs-from-gw ["catalog-gateway"] ["catalog.istioinaction.io"] 3s
# 도메인 질의를 위한 임시 설정 : 실습 완료 후에는 삭제 해둘 것
echo "127.0.0.1 catalog.istioinaction.io" | sudo tee -a /etc/hosts
cat /etc/hosts | tail -n 3
# istio-ingressgateway Service(NodePort)에 포트 정보 확인
kubectl get svc -n istio-system istio-ingressgateway -o jsonpath="{.spec.ports}" | jq
[
{
"name": "status-port",
"nodePort": 31674,
"port": 15021,
"protocol": "TCP",
"targetPort": 15021
},
{
"name": "http2",
"nodePort": 30000, # 순서1
"port": 80,
"protocol": "TCP",
"targetPort": 8080 # 순서2
},
{
"name": "https",
"nodePort": 30005,
"port": 443,
"protocol": "TCP",
"targetPort": 8443
}
]
# 호스트에서 NodePort(Service)로 접속 확인
curl -v -H "Host: catalog.istioinaction.io" http://localhost:30000
kubectl stern -l app=catalog -n istioinaction
open http://localhost:30000
open http://catalog.istioinaction.io:30000
open http://catalog.istioinaction.io:30000/items
# 신규 터미널 : 반복 접속 실행 해두기
while true; do curl -s http://catalog.istioinaction.io:30000/items/ ; sleep 1; echo; done
while true; do curl -s http://catalog.istioinaction.io:30000/items/ -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done
while true; do curl -s http://catalog.istioinaction.io:30000/items/ -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 0.5; echo; done
#
docker exec -it myk8s-control-plane istioctl proxy-status
NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION
catalog-6cf4b97d-ftl77.istioinaction Kubernetes SYNCED SYNCED SYNCED SYNCED NOT SENT istiod-7df6ffc78d-fl492 1.17.8
istio-ingressgateway-996bc6bb6-zvtdc.istio-system Kubernetes SYNCED SYNCED SYNCED SYNCED NOT SENT istiod-7df6ffc78d-fl492 1.17.8
# istio-ingressgateway
## LDS - Listener Discovery Service
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/istio-ingressgateway.istio-system
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/istio-ingressgateway.istio-system --port 8080
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/istio-ingressgateway.istio-system --port 8080 -o json
## RDS - Route Discovery Service
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080 -o json
## CDS - Cluseter Discovery Service
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local -o json
## EDS - Endpoint Discovery Service
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||catalog.istioinaction.svc.cluster.local'
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||catalog.istioinaction.svc.cluster.local' -o json
# catalog
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/catalog.istioinaction
- (2) Deploying v2 of the catalog service
- istio 트래픽 제어 기능 동작을 알아보기 위해, catalog 서비스 v2 를 배포해보자. ⇒ 버전1,2 호출 된다. v2 호출되지 않게 할 수 없을까?
# catalog 서비스 v2 를 배포 : v2에서는 imageUrl 필드가 추가
kubectl apply -f services/catalog/kubernetes/catalog-deployment-v2.yaml -n istioinaction
#
kubectl get deploy -n istioinaction --show-labels
NAME READY UP-TO-DATE AVAILABLE AGE LABELS
catalog 1/1 1 1 30m app=catalog,version=v1
catalog-v2 1/1 1 1 34s app=catalog,version=v2
kubectl get pod -n istioinaction -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
catalog-6cf4b97d-ftl77 2/2 Running 0 43m 10.10.0.14 myk8s-control-plane <none> <none>
catalog-v2-6df885b555-6hmcl 2/2 Running 0 13m 10.10.0.15 myk8s-control-plane <none> <none>
docker exec -it myk8s-control-plane istioctl proxy-status
NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION
catalog-6cf4b97d-ftl77.istioinaction Kubernetes SYNCED SYNCED SYNCED SYNCED NOT SENT istiod-7df6ffc78d-fl492 1.17.8
catalog-v2-6df885b555-6hmcl.istioinaction Kubernetes SYNCED SYNCED SYNCED SYNCED NOT SENT istiod-7df6ffc78d-fl492 1.17.8
istio-ingressgateway-996bc6bb6-zvtdc.istio-system Kubernetes SYNCED SYNCED SYNCED SYNCED NOT SENT istiod-7df6ffc78d-fl492 1.17.8

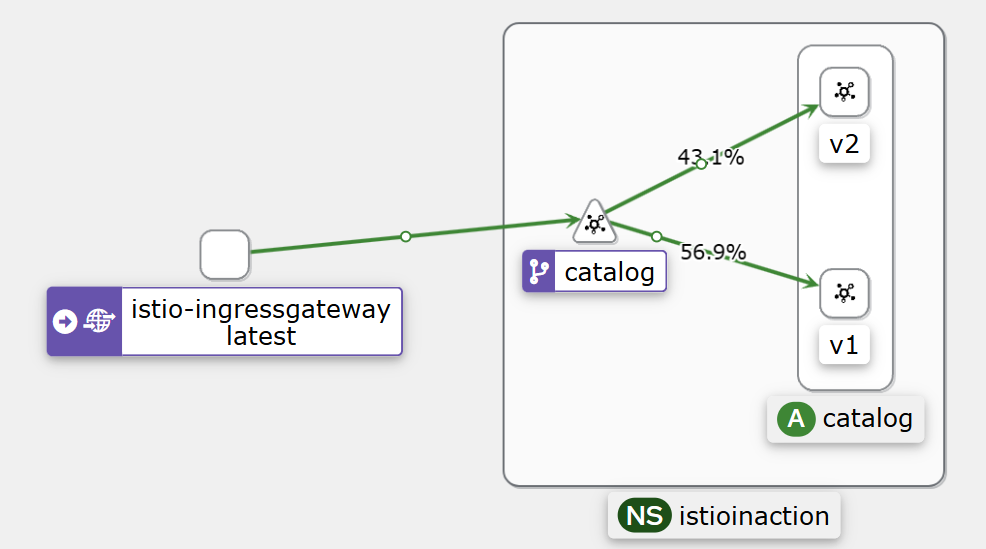

# 호출 테스트 : v1 , v2 호출 확인
for i in {1..10}; do curl -s http://catalog.istioinaction.io:30000/items/ ; printf "\n\n"; done
# istio-ingressgateway proxy-config 확인
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local -o json

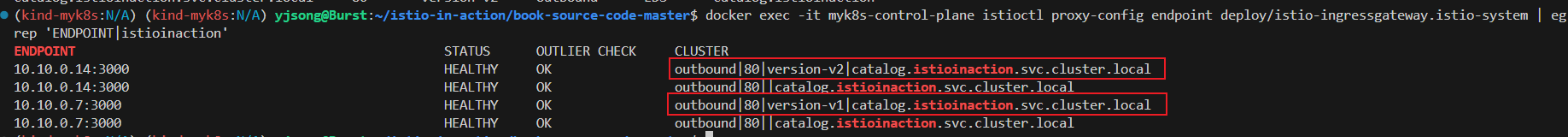

docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||catalog.istioinaction.svc.cluster.local'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||catalog.istioinaction.svc.cluster.local' -o json
# catalog proxy-config 도 직접 확인해보자

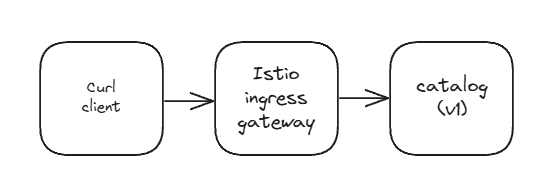

- (3) Routing all traffic to v1 of the catalog service
- 모든 트래픽을 catalog v1 으로 라우팅(다크런치)
- catalog v1은 deployment 리소스에서 레이블 app:catalog, version:v1 을 사용한다.
- catalog v2은 deployment 리소스에서 레이블 app:catalog, version:v2 을 사용한다.
- 이스티오에게는 이렇게 다른 버전들의 부분집합 subset 으로 지정하는 DestinationRule 을 생성
- 모든 트래픽을 catalog v1 으로 라우팅(다크런치)
#
kubectl get pod -l app=catalog -n istioinaction --show-labels
NAME READY STATUS RESTARTS AGE LABELS
catalog-6cf4b97d-ftl77 2/2 Running 0 56m app=catalog,...,version=v1
catalog-v2-6df885b555-6hmcl 2/2 Running 0 26m app=catalog,...,version=v2
#
cat ch5/catalog-dest-rule.yaml
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: catalog
spec:
host: catalog.istioinaction.svc.cluster.local
subsets:
- name: version-v1
labels:
version: v1
- name: version-v2
labels:
version: v2
kubectl apply -f ch5/catalog-dest-rule.yaml -n istioinaction

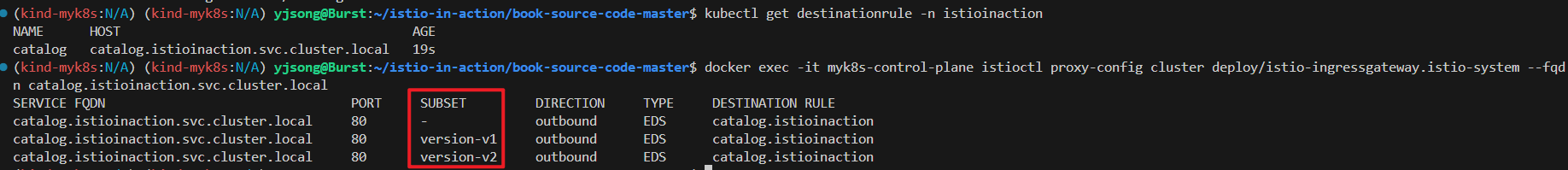

# 확인
kubectl get destinationrule -n istioinaction
NAME HOST AGE
catalog catalog.istioinaction.svc.cluster.local 8s
# catalog proxy-config 확인 : SUBSET(v1, v2, -) 확인
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
SERVICE FQDN PORT SUBSET DIRECTION TYPE DESTINATION RULE
catalog.istioinaction.svc.cluster.local 80 - outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v1 outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v2 outbound EDS catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --subset version-v1 -o json
...
"name": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
"type": "EDS",
"edsClusterConfig": {
"edsConfig": {
"ads": {},
"initialFetchTimeout": "0s",
"resourceApiVersion": "V3"
},
"serviceName": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local"
},
"connectTimeout": "10s",
"lbPolicy": "LEAST_REQUEST",
...
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --subset version-v2 -o json
...
"name": "outbound|80|version-v2|catalog.istioinaction.svc.cluster.local",
"type": "EDS",
"edsClusterConfig": {
"edsConfig": {
"ads": {},
"initialFetchTimeout": "0s",
"resourceApiVersion": "V3"
},
"serviceName": "outbound|80|version-v2|catalog.istioinaction.svc.cluster.local"
},
"connectTimeout": "10s",
"lbPolicy": "LEAST_REQUEST",
...
#
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local -o json
...
"name": "outbound|80||catalog.istioinaction.svc.cluster.local",
"type": "EDS",
"edsClusterConfig": {
"edsConfig": {
"ads": {},
"initialFetchTimeout": "0s",
"resourceApiVersion": "V3"
},
"serviceName": "outbound|80||catalog.istioinaction.svc.cluster.local"
},
...
#
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system | egrep 'ENDPOINT|istioinaction'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80|version-v1|catalog.istioinaction.svc.cluster.local
10.10.0.16:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80|version-v2|catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v1|catalog.istioinaction.svc.cluster.local'
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v1|catalog.istioinaction.svc.cluster.local' -o json
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v2|catalog.istioinaction.svc.cluster.local'
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v2|catalog.istioinaction.svc.cluster.local' -o json
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||catalog.istioinaction.svc.cluster.local'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
# VirtualService 수정 (subset 추가)
cat ch5/catalog-vs-v1.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: catalog-vs-from-gw
spec:
hosts:
- "catalog.istioinaction.io"
gateways:
- catalog-gateway
http:
- route:
- destination:
host: catalog
subset: version-v1
kubectl apply -f ch5/catalog-vs-v1.yaml -n istioinaction
# 호출 테스트 : v1
for i in {1..10}; do curl -s http://catalog.istioinaction.io:30000/items/ ; printf "\n\n"; done
# 세부 정보 확인
# routes 에 virtualHosts 항목에 routes.route 에 cluster 부분이 ...version-v1... 설정 확인
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080 -o json
...
"virtualHosts": [
{
"name": "catalog.istioinaction.io:80",
"domains": [
"catalog.istioinaction.io"
],
"routes": [
{
"match": {
"prefix": "/"
},
"route": {
"cluster": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
"timeout": "0s",
"retryPolicy": {
"retryOn": "connect-failure,refused-stream,unavailable,cancelled,retriable-status-codes",
"numRetries": 2,
...
# cluster
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --subset version-v1
SERVICE FQDN PORT SUBSET DIRECTION TYPE DESTINATION RULE
catalog.istioinaction.svc.cluster.local 80 version-v1 outbound EDS catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --subset version-v1 -o json
...
"name": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
"type": "EDS",
"edsClusterConfig": {
"edsConfig": {
"ads": {},
"initialFetchTimeout": "0s",
"resourceApiVersion": "V3"
},
"serviceName": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local"
},
...
"metadata": {
"filterMetadata": {
"istio": {
"config": "/apis/networking.istio.io/v1alpha3/namespaces/istioinaction/destination-rule/catalog",
"default_original_port": 80,
"services": [
{
"host": "catalog.istioinaction.svc.cluster.local",
"name": "catalog",
"namespace": "istioinaction"
}
],
"subset": "version-v1"
...
# endpoint
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system | egrep 'ENDPOINT|istioinaction'
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v1|catalog.istioinaction.svc.cluster.local'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80|version-v1|catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80|version-v1|catalog.istioinaction.svc.cluster.local' -o json
...
# istio-proxy (catalog)
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/catalog.istioinaction --subset version-v1 -o json
...
"metadata": {
"filterMetadata": {
"istio": {
"config": "/apis/networking.istio.io/v1alpha3/namespaces/istioinaction/destination-rule/catalog",
"default_original_port": 80,
"services": [
{
"host": "catalog.istioinaction.svc.cluster.local",
"name": "catalog",
"namespace": "istioinaction"
}
],
"subset": "version-v1"
}
}
},
...
- (4) Routing specific requests to v2
- HTTP 요청 헤더 x-istio-cohort: internal 을 포함한 트래픽(통제된 방식)은 catalog v2로 보내고 싶다.
#
cat ch5/catalog-vs-v2-request.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: catalog-vs-from-gw
spec:
hosts:
- "catalog.istioinaction.io"
gateways:
- catalog-gateway
http:
- match:
- headers:
x-istio-cohort:
exact: "internal"
route:
- destination:
host: catalog
subset: version-v2
- route:
- destination:
host: catalog
subset: version-v1
kubectl apply -f ch5/catalog-vs-v2-request.yaml -n istioinaction
# 호출 테스트 : 여전히 v1
for i in {1..10}; do curl -s http://catalog.istioinaction.io:30000/items/ ; printf "\n\n"; done
# 요청 헤더 포함 호출 테스트 : v2!
curl http://catalog.istioinaction.io:30000/items -H "x-istio-cohort: internal"
# (옵션) 신규 터미널 : v2 반복 접속
while true; do curl -s http://catalog.istioinaction.io:30000/items/ -H "x-istio-cohort: internal" -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 2; echo; done
# 상세 확인
# route 추가 : routes 에 2개의 route 확인 - 위에서 부터 적용되는 순서 중요!
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080
NAME DOMAINS MATCH VIRTUAL SERVICE
http.8080 catalog.istioinaction.io /* catalog-vs-from-gw.istioinaction
http.8080 catalog.istioinaction.io /* catalog-vs-from-gw.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080 -o json
...
"virtualHosts": [
{
"name": "catalog.istioinaction.io:80",
"domains": [
"catalog.istioinaction.io"
],
"routes": [
{
"match": {
"prefix": "/",
"caseSensitive": true,
"headers": [
{
"name": "x-istio-cohort",
"stringMatch": {
"exact": "internal"
}
}
]
},
"route": {
"cluster": "outbound|80|version-v2|catalog.istioinaction.svc.cluster.local",
"timeout": "0s",
...
{
"match": {
"prefix": "/"
},
"route": {
"cluster": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
...
#
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system | egrep 'ENDPOINT|istioinaction'
# istio-proxy (catalog)에는 routes 정보가 아래 cluster 로 보내는 1개만 있다. 즉 istio-proxy(istio-ingressgateway)가 routes 분기 처리하는 것을 알 수 있다.
## "cluster": "outbound|80||catalog.istioinaction.svc.cluster.local"
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction --name 80 -o json
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction | grep catalog
80 catalog, catalog.istioinaction + 1 more... /*
- (5) Routing deep within a call graph 호출 그래프 내 깊은 위치에서 라우팅 Mesh(Gateway)
- 지금까지 이스티오를 사용해 요청을 라우팅하는 방법을 살펴봤지만, 라우팅 수행 위치가 에지/게이트웨이뿐이었다.
- 이런 트래픽 규칙은 호출 그래프 내 깊은 곳에서도 적용할 수 있습니다.
- 2장에서 이 작업을 수행했으므로, 프로세스를 다시 만들고 기대대로 동작하는지 확인해보자.
# 초기화
kubectl delete gateway,virtualservice,destinationrule --all -n istioinaction
# webapp 기동
kubectl apply -n istioinaction -f services/webapp/kubernetes/webapp.yaml
kubectl apply -f services/catalog/kubernetes/catalog.yaml -n istioinaction # 이미 배포 상태
kubectl apply -f services/catalog/kubernetes/catalog-deployment-v2.yaml -n istioinaction # 이미 배포 상태
# 확인
kubectl get deploy,pod,svc,ep -n istioinaction
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/catalog 1/1 1 1 55m
deployment.apps/catalog-v2 1/1 1 1 48m
deployment.apps/webapp 1/1 1 1 42s
NAME READY STATUS RESTARTS AGE
pod/catalog-6cf4b97d-jxpb8 2/2 Running 0 55m
pod/catalog-v2-6df885b555-rg9f5 2/2 Running 0 48m
pod/webapp-7685bcb84-2q7rg 2/2 Running 0 42s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/catalog ClusterIP 10.200.1.254 <none> 80/TCP 55m
service/webapp ClusterIP 10.200.1.61 <none> 80/TCP 42s
NAME ENDPOINTS AGE
endpoints/catalog 10.10.0.16:3000,10.10.0.17:3000 55m
endpoints/webapp 10.10.0.18:8080 42s
- GW, VS 설정 후 호출 테스트 : webapp → catalog 는 k8s service(clusterIP) 라우팅 사용
# Now, set up the Istio ingress gateway to route to the webapp service
cat services/webapp/istio/webapp-catalog-gw-vs.yaml
---
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: coolstore-gateway
spec:
selector:
istio: ingressgateway # use istio default controller
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "webapp.istioinaction.io"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: webapp-virtualservice
spec:
hosts:
- "webapp.istioinaction.io"
gateways:
- coolstore-gateway
http:
- route:
- destination:
host: webapp
port:
number: 80
kubectl apply -f services/webapp/istio/webapp-catalog-gw-vs.yaml -n istioinaction
# 확인
kubectl get gw,vs -n istioinaction
NAME AGE
gateway.networking.istio.io/coolstore-gateway 3s
NAME GATEWAYS HOSTS AGE
virtualservice.networking.istio.io/webapp-virtualservice ["coolstore-gateway"] ["webapp.istioinaction.io"] 3s
# 도메인 질의를 위한 임시 설정 : 실습 완료 후에는 삭제 해둘 것
echo "127.0.0.1 webapp.istioinaction.io" | sudo tee -a /etc/hosts
cat /etc/hosts | tail -n 3
# 호출테스트 : 외부(web, curl) → ingressgw → webapp → catalog (v1, v2)
curl -s http://webapp.istioinaction.io:30000/api/catalog | jq
# 반복 호출테스트 : 신규터미널 2개에 아래 각각 실행 해두기
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -H "x-istio-cohort: internal" -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 2; echo; done
# proxy-config : istio-ingressgateway
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system --name http.8080
NAME DOMAINS MATCH VIRTUAL SERVICE
http.8080 webapp.istioinaction.io /* webapp-virtualservice.istioinaction
=> route."cluster": "outbound|80||webapp.istioinaction.svc.cluster.local"
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system | egrep 'webapp|catalog'
catalog.istioinaction.svc.cluster.local 80 - outbound EDS
webapp.istioinaction.svc.cluster.local 80 - outbound EDS
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn webapp.istioinaction.svc.cluster.local -o json
...
"name": "outbound|80||webapp.istioinaction.svc.cluster.local",
"type": "EDS",
...
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system --cluster 'outbound|80||webapp.istioinaction.svc.cluster.local'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.18:8080 HEALTHY OK outbound|80||webapp.istioinaction.svc.cluster.local
# proxy-config : webapp
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/webapp.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/webapp.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/webapp.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/webapp.istioinaction
# proxy-config : catalog
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/catalog.istioinaction
# webapp istio-proxy 로그 활성화
# 신규 터미널
kubectl logs -n istioinaction -l app=webapp -c istio-proxy -f
# webapp istio-proxy 로그 활성화 적용
cat << EOF | kubectl apply -f -
apiVersion: telemetry.istio.io/v1alpha1
kind: Telemetry
metadata:
name: webapp
namespace: istioinaction
spec:
selector:
matchLabels:
app: webapp
accessLogging:
- providers:
- name: envoy #2 액세스 로그를 위한 프로바이더 설정
disabled: false #3 disable 를 false 로 설정해 활성화한다
EOF
# webapp → catalog 는 k8s service(clusterIP) 라우팅 사용 확인!
kubectl logs -n istioinaction -l app=webapp -c istio-proxy -f
[2025-04-18T13:27:57.178Z] "HEAD /api/catalog HTTP/1.1" 200 - via_upstream - "-" 0 0 8 8 "172.18.0.1" "curl/8.7.1" "8d425652-17a9-4b41-a21c-874acab3b1f4" "webapp.istioinaction.io:30000" "10.10.0.18:8080" inbound|8080|| 127.0.0.6:51809 10.10.0.18:8080 172.18.0.1:0 outbound_.80_._.webapp.istioinaction.svc.cluster.local default
=> 이 로그는 webapp 서비스의 사이드카 프록시가 클라이언트로부터 직접 HTTP 요청을 받은 장면이고, 이 요청을 10.10.0.18:8080 (즉, webapp 서비스의 실제 컨테이너)으로 보냄을 의미
[2025-04-18T13:27:58.237Z] "GET /items HTTP/1.1" 200 - via_upstream - "-" 0 502 2 2 "172.18.0.1" "beegoServer" "49b55b86-2505-4a5c-aadf-950d03705b87" "catalog.istioinaction:80" "10.10.0.16:3000" outbound|80||catalog.istioinaction.svc.cluster.local 10.10.0.18:45152 10.200.1.254:80 172.18.0.1:0 - default
=> 이 로그는 webapp 서비스가 catalog 서비스로 HTTP 요청을 보낸 상황이에요. Envoy는 catalog.istioinaction이라는 Kubernetes catalog 서비스(clusterIp 10.200.1.254:80)로 라우팅하고, 실제 Pod IP는 10.10.0.16:3000으로 연결되었어요.
...
- VirtualService and DestinationRule resources that route all traffic to v1 of the catalog service
#
ch5/catalog-dest-rule.yaml
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: catalog
spec:
host: catalog.istioinaction.svc.cluster.local
subsets:
- name: version-v1
labels:
version: v1
- name: version-v2
labels:
version: v2
kubectl apply -f ch5/catalog-dest-rule.yaml -n istioinaction
# istio-proxy
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/istio-ingressgateway.istio-system --fqdn catalog.istioinaction.svc.cluster.local
SERVICE FQDN PORT SUBSET DIRECTION TYPE DESTINATION RULE
catalog.istioinaction.svc.cluster.local 80 - outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v1 outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v2 outbound EDS catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/istio-ingressgateway.istio-system | egrep 'ENDPOINT|istioinaction'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80|version-v1|catalog.istioinaction.svc.cluster.local
10.10.0.16:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80|version-v2|catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.18:8080 HEALTHY OK outbound|80||webapp.istioinaction.svc.cluster.local
#
cat ch5/catalog-vs-v1-mesh.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: catalog
spec:
hosts:
- catalog
gateways: # 만약, gateways 부분을 제외하고 배포하면 암묵적으로 mesh gateways가 적용됨.
- mesh # VirtualService는 메시 내의 모든 사이드카(현재 webapp, catalog)에 적용된다. edge는 제외.
http:
- route:
- destination:
host: catalog
subset: version-v1
kubectl apply -f ch5/catalog-vs-v1-mesh.yaml -n istioinaction

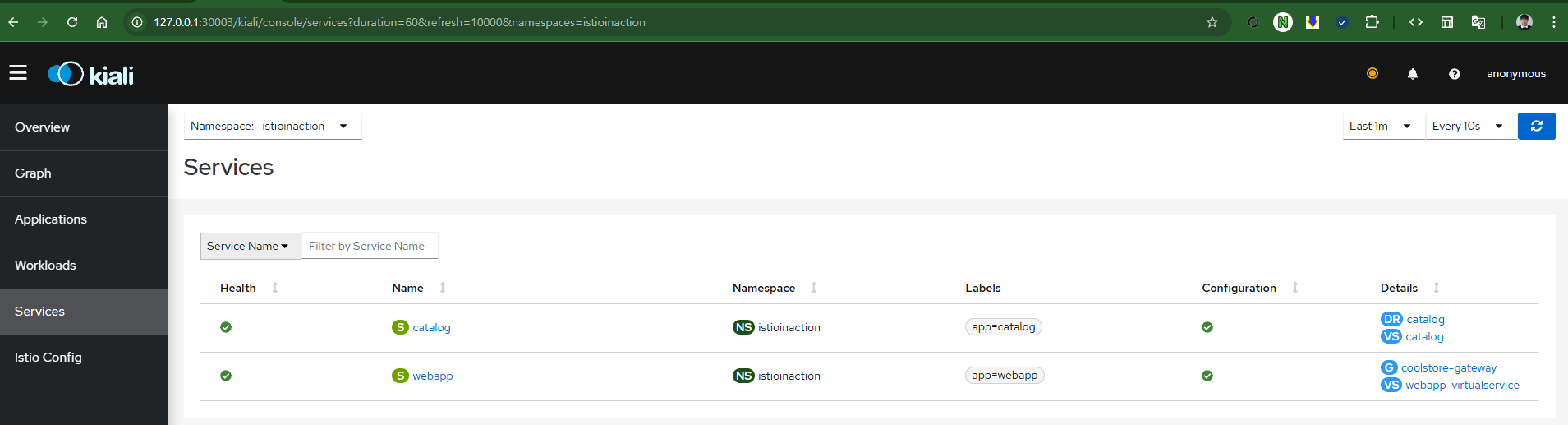

# VirtualService 확인 : GATEWAYS 에 mesh 확인
kubectl get vs -n istioinaction
NAME GATEWAYS HOSTS AGE
catalog ["mesh"] ["catalog"] 12s
webapp-virtualservice ["coolstore-gateway"] ["webapp.istioinaction.io"] 28s
# 반복 호출테스트 : 신규터미널 2개에 아래 각각 실행 해두기 >> 현재는 v1만 라우팅 처리
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -H "x-istio-cohort: internal" -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 2; echo; done
# webapp → catalog 호출도 istio 의 DestinationRule 라우팅 전달 처리! : 신규터미널
kubectl logs -n istioinaction -l app=webapp -c istio-proxy -f
[2025-04-18T13:52:54.772Z] "GET /items HTTP/1.1" 200 - via_upstream - "-" 0 502 2 2 "172.18.0.1" "beegoServer" "2035962f-144f-4d07-9102-4e3ab7ea3484" "catalog.istioinaction:80" "10.10.0.16:3000" outbound|80|version-v1|catalog.istioinaction.svc.cluster.local 10.10.0.18:52458 10.200.1.254:80 172.18.0.1:0 - -
=> 이 로그는 webapp이 내부적으로 catalog 서비스를 호출하는 로그이고, version-v1이라는 **서브셋(subset)**으로 요청이 라우팅되었어요. 이는 DestinationRule에서 subset: version-v1으로 정의된 엔드포인트로 라우팅이 잘 되었다는 뜻이에요.
# proxy-config (webapp) : 기존에 webapp 에서 catalog 로 VirtualService 정보는 없었는데, 추가됨을 확인
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/webapp.istioinaction | egrep 'NAME|catalog'
NAME DOMAINS MATCH VIRTUAL SERVICE
80 catalog, catalog.istioinaction + 1 more... /* catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/webapp.istioinaction --name 80 -o json > webapp-routes.json
cat webapp-routes.json | jq
...
"virtualHosts": [
{
"name": "catalog.istioinaction.svc.cluster.local:80",
"domains": [
"catalog.istioinaction.svc.cluster.local",
"catalog",
"catalog.istioinaction.svc",
"catalog.istioinaction",
"10.200.1.254" # 해당 IP는 catalog service(clusterIP)
],
"routes": [
{
"match": {
"prefix": "/"
},
"route": {
"cluster": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
"timeout": "0s",
...
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/webapp.istioinaction --fqdn catalog.istioinaction.svc.cluster.local
SERVICE FQDN PORT SUBSET DIRECTION TYPE DESTINATION RULE
catalog.istioinaction.svc.cluster.local 80 - outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v1 outbound EDS catalog.istioinaction
catalog.istioinaction.svc.cluster.local 80 version-v2 outbound EDS catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/webapp.istioinaction --subset version-v1 -o json
...
"name": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
"type": "EDS",
...
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/webapp.istioinaction | egrep 'ENDPOINT|catalog'
ENDPOINT STATUS OUTLIER CHECK CLUSTER
10.10.0.16:3000 HEALTHY OK outbound|80|version-v1|catalog.istioinaction.svc.cluster.local
10.10.0.16:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80|version-v2|catalog.istioinaction.svc.cluster.local
10.10.0.17:3000 HEALTHY OK outbound|80||catalog.istioinaction.svc.cluster.local
# proxy-config (catalog) : gateway.mesh 이므로, 메시 내에 모든 사이드카에 VirtualService 적용됨을 확인. 아래 routes 부분
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction | egrep 'NAME|catalog'
NAME DOMAINS MATCH VIRTUAL SERVICE
80 catalog, catalog.istioinaction + 1 more... /* catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/catalog.istioinaction
#
cat ch5/catalog-vs-v2-request-mesh.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: catalog
spec:
hosts:
- catalog
gateways:
- mesh
http:
- match:
- headers:
x-istio-cohort:
exact: "internal"
route:
- destination:
host: catalog
subset: version-v2
- route:
- destination:
host: catalog
subset: version-v1
kubectl apply -f ch5/catalog-vs-v2-request-mesh.yaml -n istioinaction
# 반복 호출테스트 : 신규터미널 2개에 아래 각각 실행 >> v1, v2 각기 라우팅 확인
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done
while true; do curl -s http://webapp.istioinaction.io:30000/api/catalog -H "x-istio-cohort: internal" -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 2; echo; done
# proxy-config (webapp) : 기존에 webapp 에서 catalog 로 VirtualService 추가된 2개 항목 확인
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/webapp.istioinaction | egrep 'NAME|catalog'
NAME DOMAINS MATCH VIRTUAL SERVICE
80 catalog, catalog.istioinaction + 1 more... /* catalog.istioinaction
80 catalog, catalog.istioinaction + 1 more... /* catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/webapp.istioinaction --name 80 -o json > webapp-routes.json
cat webapp-routes.json | jq
...
"virtualHosts": [
{
"name": "catalog.istioinaction.svc.cluster.local:80",
"domains": [
"catalog.istioinaction.svc.cluster.local",
"catalog",
"catalog.istioinaction.svc",
"catalog.istioinaction",
"10.200.1.254"
],
"routes": [
{
"match": {
"prefix": "/",
"caseSensitive": true,
"headers": [
{
"name": "x-istio-cohort",
"stringMatch": {
"exact": "internal"
}
}
]
},
"route": {
"cluster": "outbound|80|version-v2|catalog.istioinaction.svc.cluster.local",
....
{
"match": {
"prefix": "/"
},
"route": {
"cluster": "outbound|80|version-v1|catalog.istioinaction.svc.cluster.local",
...
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/webapp.istioinaction --fqdn catalog.istioinaction.svc.cluster.local
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/webapp.istioinaction | egrep 'ENDPOINT|catalog'
# proxy-config (catalog) : mesh 이므로 VS가 아래 routes(catalog)에도 적용됨
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/catalog.istioinaction
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/catalog.istioinaction
728x90
'2025_Istio Hands-on Study' 카테고리의 다른 글
| 3주차 - Traffic control(3) (0) | 2025.04.26 |
|---|---|
| 3주차 - Traffic control(2) (0) | 2025.04.26 |
| 2주차 - Envoy, Isto Gateway(3) (0) | 2025.04.22 |
| 2주차 - Envoy, Isto Gateway(2) (0) | 2025.04.22 |
| 2주차 - Envoy, Isto Gateway(1) (0) | 2025.04.22 |
